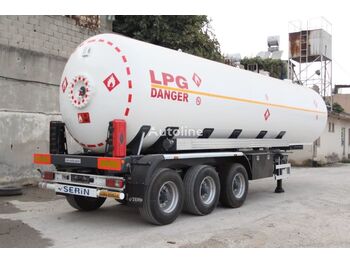

Новый Полуприцеп-цистерна для транспортировки газа Serin 2023

BRAND SERİN

TANK TYPE Horizontal Cylindrical

PROJECT CODE AD- Merkblatter / EN 13445

DESIGN TEMPERATURE Min -20˚C / max +70˚C

DESIGN PRESSURE 17,5 bar

TEST PRESSURE 26,5 bar

MATERIAL P355 GH or P355NH

HEAD TYPE Elipsoidal

EXTERNAL TANK

DIAMETER 45 m32.400 mm

BODY TANK THICKNESS 45 m310 mm

HEAD TANK THICKNESS 45 m312 mm

TOTAL LENGTH OF TANK 45 m311.200 mm

CORROSION 1 mm

TANK VOLUME 45 m3

EQUIPMENT TANKS OVER Hydraulic Operator 1 unit

2 "Ball Valves 2 units BATU

2” Hydraulic valves 1 units ATILIM

3” Hydraulic valves 1 unit ATILIM

2 "Safety Valve2 units  ATILIM

Rotogauge (Rotary Level Indicator)  1 unit

ATILIM Glycerine pressure gauge (0-25 bar), Ø 63  1 unit PAKKENS Thermometer (-30 / 60 ˚ C) Ø63  1 unit PAKKENS

Acme Filler Cap  2 unitsATILIM Manhole 1 unit 16”

Filter 1 unit

Blasting and Painting Before painting, the Tank will be sand blasted with SA 2.5 quality undercoat & polyurethane based white topcoat applied providing a

total thickness of min. 150 microns. COLOUR: WHITE

Control (Inspection and

Tests) All tests & inspections mentioned below wiil be carried out

under the control of third party & certified by the same authority.

Checking & approval of design & calculations, Material inspection & stamp transferring seperately, Visual & dimensional inspection plate orientation, Head control,

Radiographic control, Penetrate dye test, Hydrostatic test

The reports of the A/M tests & inspections will be presented to the

customer together with the inspection certificate of teh tank

whicih will be given by the third party after the completion of the tank & the inspections.

CERTIFICATION ISO 9001-2008 VE EN 3834-2

3 AXLES SEMI-TRAILER

CHASSIS Half chassis made of 6252 steel quality. HEAVY DUTY Type

AXLE Brand: SERİN AXLE 12 TON.

Capacity: 3X12 tons/per axle Type: : Air

suspension Axle Drum Brake

SUSPENSION SYSTEM Air Suspension

BRAKE SYSTEM WABCO ABS (GERMAN)

LIFTING JACK

(LANDING GEARS) OMS brand with double speed and the capacity to carry 25

tons each.

TYRES Size 385X65X22,5 BRIDGESTONE 7 units.

BALL VALVES BOXES Valves to be in right side

RIMS Size is R22,5 7 units JANTSA Brand

FENDERS Steel body with Aluminum covering

KING PIN 2 " flange and a high level of beating stress and rupture-

Resistant steel and bolted to the system has been dismantled and can be changed easily. OMS

King Pin plate thickness will be 12 mm and will be reinforced with min. 3+2 steel 160 NPU.

ELECTRICAL SYSTEM There are 24 V electrical systems with European norms. In

Addition, tank-top and trailer top and the electric lamp and warning will be posters. (ADR) 2 stop lights on the rear Bumper, 5 lights on the each side of the tank.

REFLECTORS 3M Brand yellow color along both sides of the Tank and 3M

Brand red color on the rear bumper and on the rear dished

Heads.

ACCESSORIES 1 unit Steel Bumper

1 unit water tank (Made of Plastic with the capacity of 30 lt)

1 unit spare tire carrier basket

2 units wheel chock and the connection

2 units Fire Extinguisher Cabinet (ADR)

2 units Food & Tool Box made of steel

Sunshade will be installed to the top of the Tank
