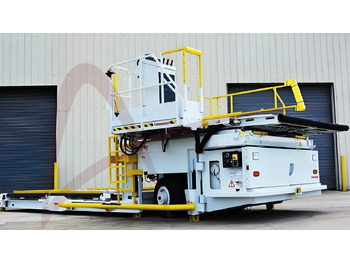

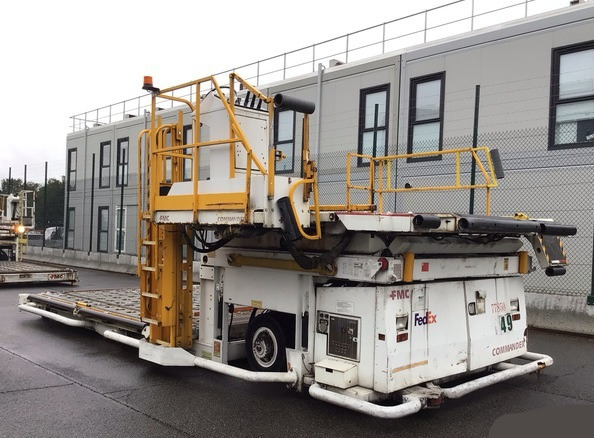

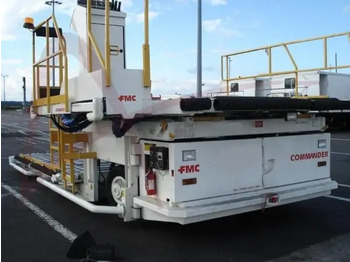

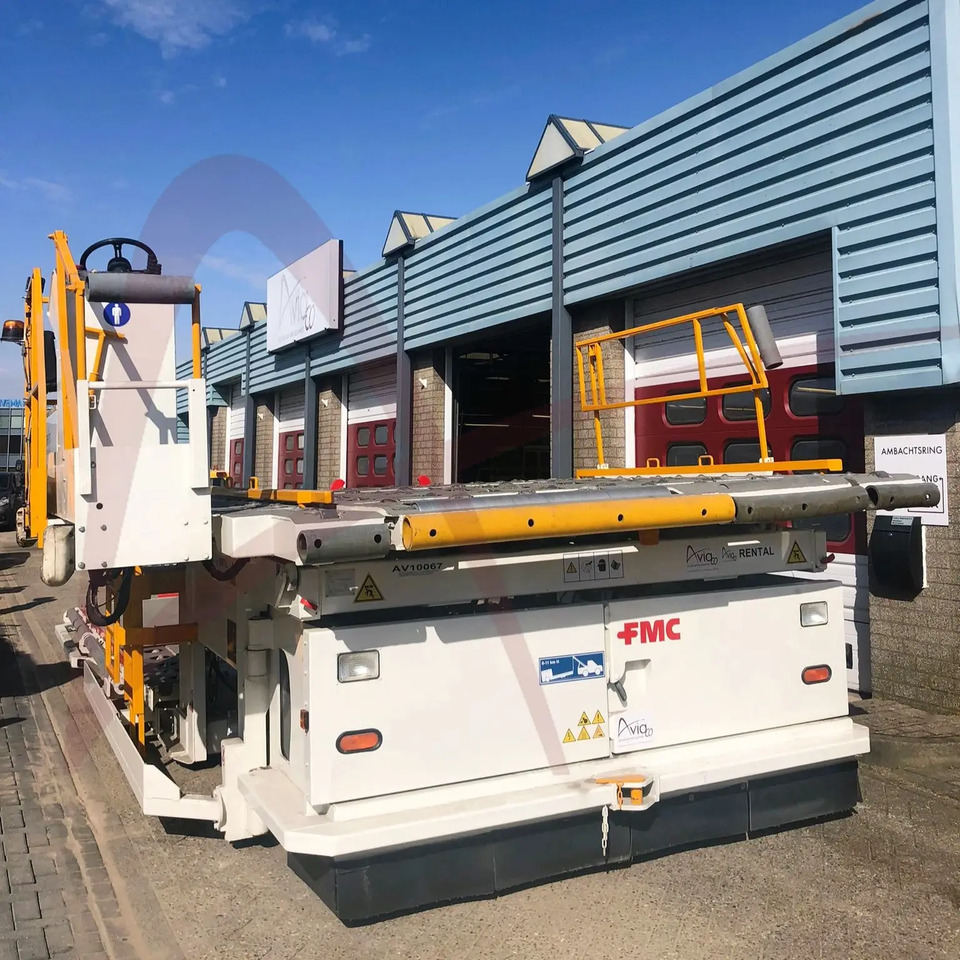

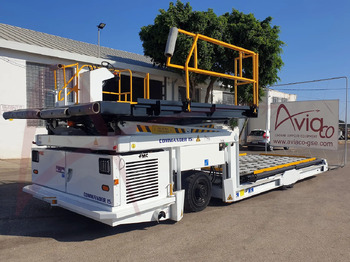

Перегружатель контейнеров и паллет FMC COMMANDER 15i

Lift Elevation Maximum Minimum

Bridge 3,600 mm (141.7 in) 1,753mm (69 in)

Rear Platform 3,556 mm (140 in) 483mm (19 in)

Main deck configuration: 5,588 mm (220 in) opt. 1,930 mm (76 in) opt.

Platform Lift Speeds

Bridge 4.6 mpm (15 fpm)

Rear Platform 13.7 mpm (45 fpm)

Convey System

Surface Patented HeliRoll deck and straight roller

Speed 18.3 mpm (60 fpm)

Power Unit

Standard Engine BF4M 2012 Diesel Engine 75 kW (99 hp)@ 2,500 rpm

Optional Power Battery electric power 160 Vac

Hydraulic System Load Sensing, Pressure Compensated - 121 LPM @ 240 bar

(32 gpm @ 3,500 psi)

Electrical System 24 Vdc, PLC controlled advanced diagnostics and

Common Relays control system

Turning radius 7.9 m (26 ft.)

Propulsion Systems 3 infinitely variable speed settings, hydrostatic drive

Brakes Hydraulic / Dynamic with spring applied park

The Commander 15i services these aircraft:

Commander Configuration Main Deck - Lower Lobe -

Standard 707, 727, 737, DC-8, 747, 767, 777, MD-11, DC-10, L-1011,

DC-9, BAE146 A-300, A-310, A-320, A-321, A-330,

A-340, A-380

Wide 707, 727, 737, DC-8, 747, 737, 777, MD-11, DC-10, L-1011,

DC-9, BAE146 A-300, A-310, A-321, A-330, A-340,

A-380, 767 125” wide door

Universal 707, 727, 737, 747, 757, 747, 767, 777, MD-11, DC-10, L-1011,

767, 777, MD-11, DC-8, A-300, A-310, A-330, A-340, A-380,

DC-9, DC-10, A-300, 767 125” wide door

A-310, A-330, A-340,

L-1011

Specification Standard Features:

•Swing-out power module

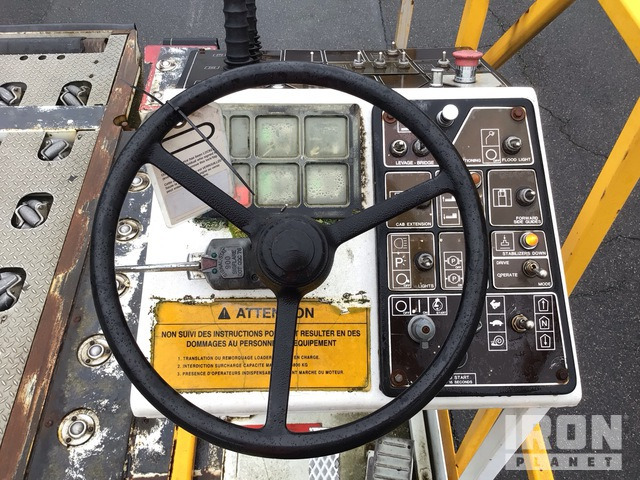

•PLC diagnostic panel

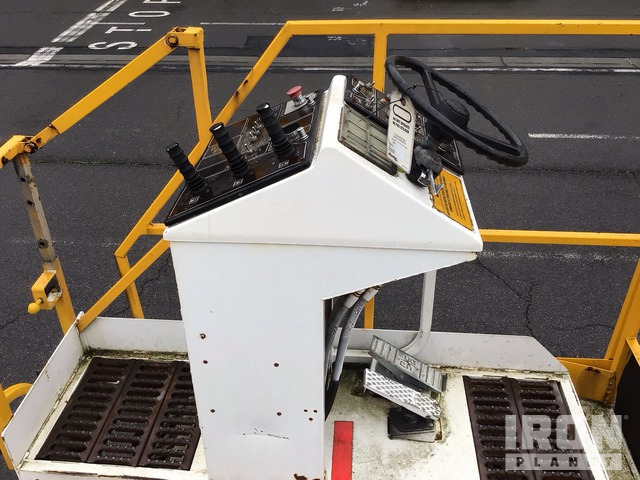

•Stand-up operator’s platform

•Solid rubber tires

•Adjustable operator’s platform

•Hydraulic fold-down front

platform wing

•Container bridge with 5 HeliRoll

rows

•Emergency electric hydraulic

pump

•Hydraulic height adjustment to

rear bogy wheels , Steel deck

plates, Proximity switches

•End/side transfer capability

Optional Features:

•Battery electric power

•Wide capability

•CE certification option package

•Powered operator’s platform

•Various warning horns/alarms/

beacons available

•Various side transfer/container

rotation

•Fold-down wings

•Bridge tilt, Hush kits,

•Work lights & turn signals

•Aircraft following system

•Aluminum deck plates

•Cold weather packages

Standard Features:

•Swing-out power module

•PLC diagnostic panel

•Stand-up operator’s platform

•Solid rubber tires

•Adjustable operator’s platform

•Hydraulic fold-down front

platform wing

•Container bridge with 5 HeliRoll

rows

•Emergency electric hydraulic

pump

•Hydraulic height adjustment to

rear bogy wheels , Steel deck

plates, Proximity switches

•End/side transfer capability
